Unthreaded Studs For Capacitor Discharge Welding - UT Type
GB /T 10432.3 - 2010

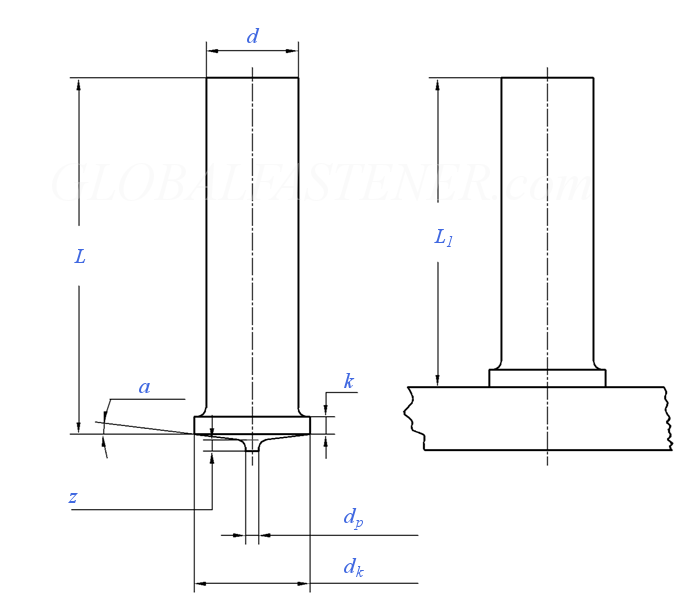

Display drawing:
Screw Thread
3
4
5
6
Nominal Diameter
3
4
5
6
D
Max
3.1
4.1
5.1
6.1
D
Min
2.9
3.9
4.9
5.9
Dk
Max
4.7
5.7
6.7
7.7
Dk
Min
4.3
5.3
6.3
7.3
K
Max
1.4
1.4
1.4
1.4
K
Min
0.7
0.7
0.8
0.8
Dp
Max
0.68
0.73
0.83
0.83
Dp
Min
0.52
0.57
0.67
0.67
Z
Max
0.6
0.6
0.85
0.85
Z
Min
0.5
0.5
0.75
0.75
A
±1°
3
3
3
3
